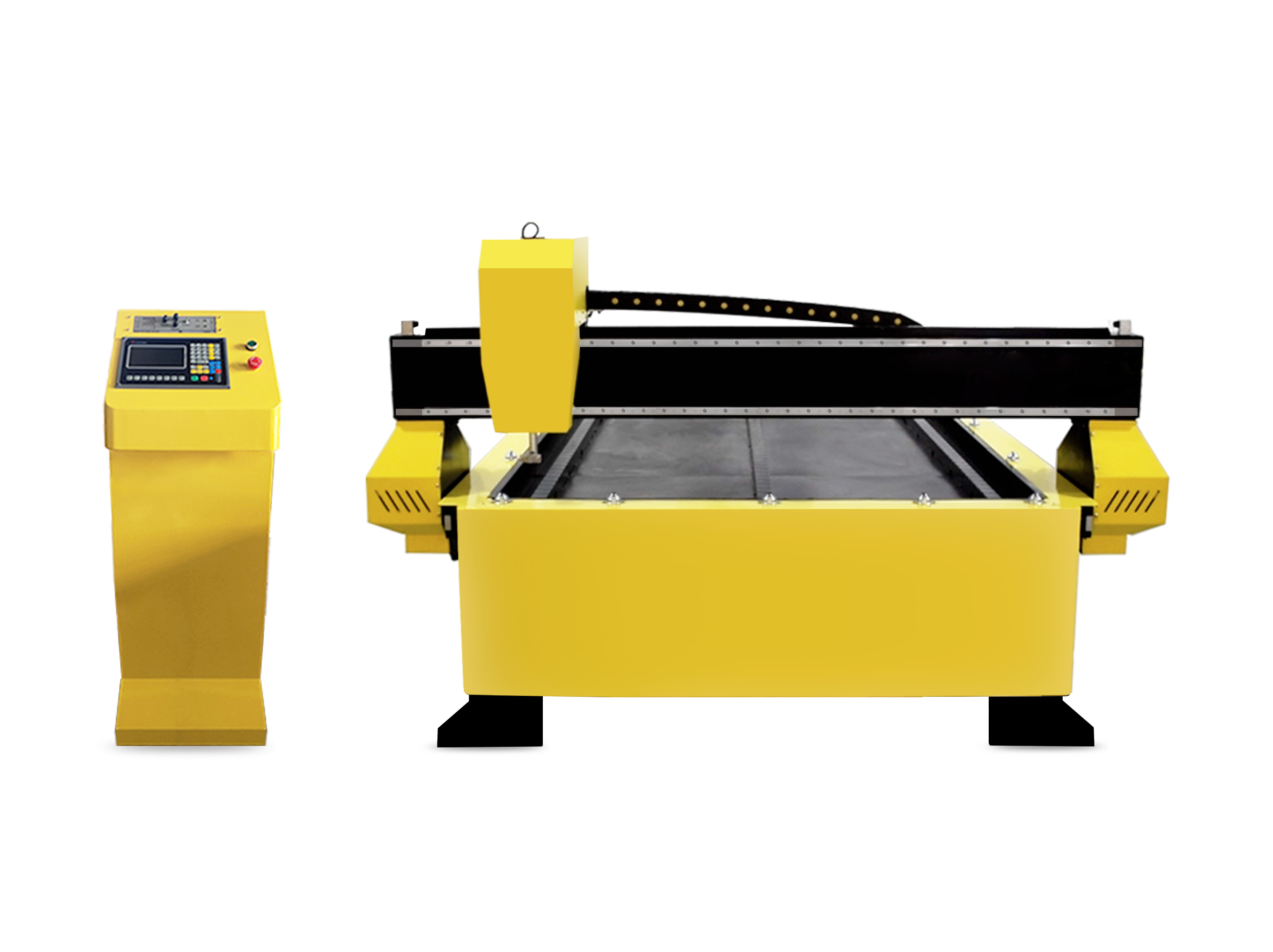

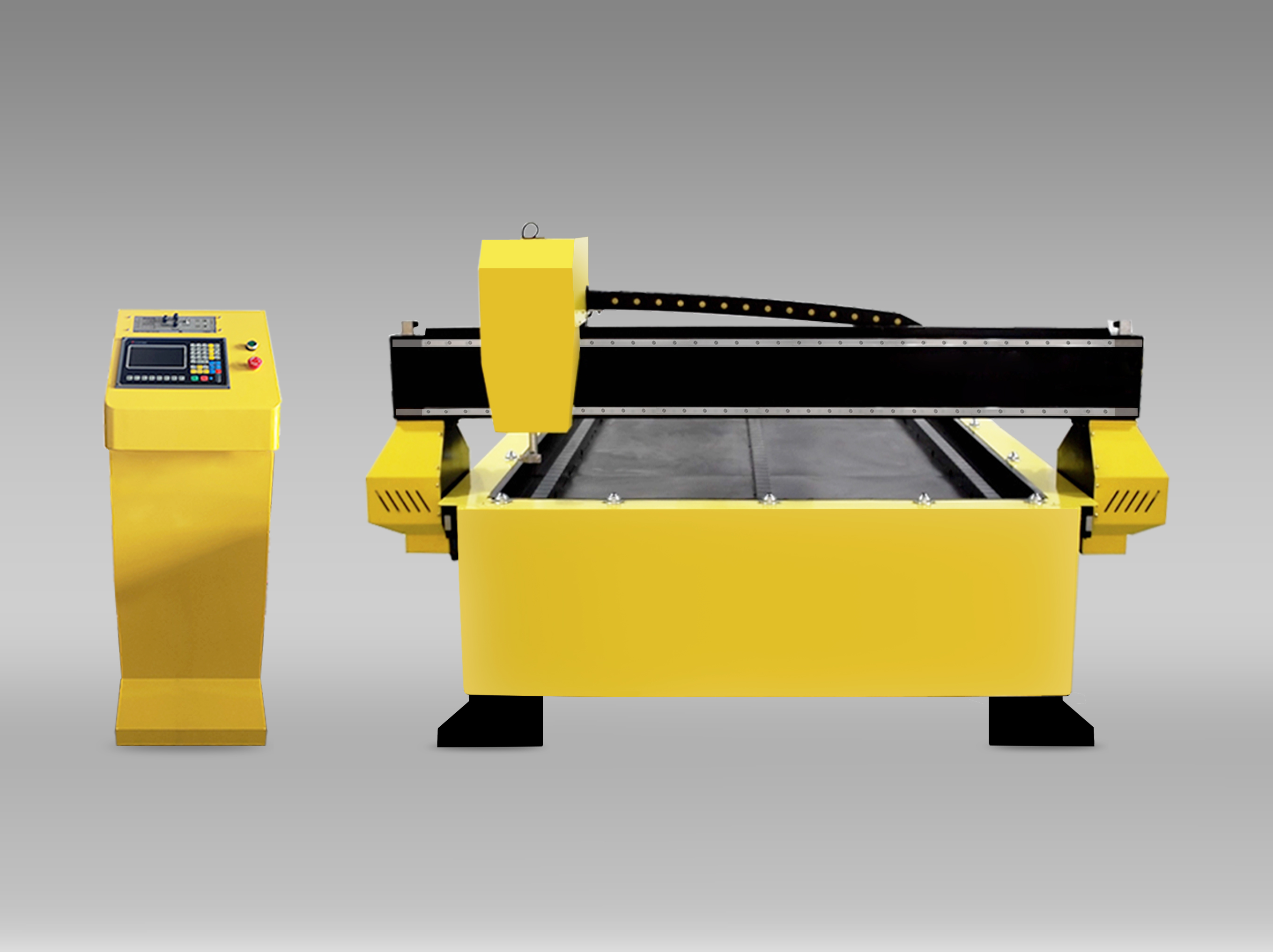

    1530 Table Plasma and Flame Cutting Machine

  • 1530 Table Plasma and Flame Cutting Machine
  • 1530 Table Plasma and Flame Cutting Machine

Product features:

1530 Table Plasma and Flame Cutting Machine,ApplicationMaterials: Stainlesssteel,mildsteel,brass,copper,aluminumalloy,sheetmetal,sprin gsteel,gold,silver,etc ApplicationIndustry: Sheetmetal,kitchenware,components,decorationsindustry
Keyword:
TEL:0086-531-88605121
SEND AN INQUIRY

Product advantage

1.seamless welding machine body

2.1500*3000mm working area

3.China LGK 63A Plasma source(Optional)

4.Independent control cabinet

5.STARfire  control system

6.Automatic Torch height controller

7.Starcam software

8.2GB processing file

9.high precision square guide rail

10.high precision ball screw

11.China high precision stepper motor

12.Multi-function tool box

13.20 sets of nozzle electrodes

14.Two draught machines to remove smoke

15.Easy feeding slide material system

16.High quality soft electricity cable can be bend for 1.5 million times

17.All the necessary parts for machine working

Product parameters

Model

1530  63A Plasma cutting machine (high configuration)

X,Y working area

1500*3000mm

Z working area

150mm

Packing dimension

2280mm*3850mm*1850mm

Lathe bed

Very thick steel structure

Machine Power

8.5kw

Working voltage

380V three phase 60hz

Reposition precision

0.02mm

Processing precision

0.1mm

Maximum cutting speed

12000mm/min

Torch Height control mode

Automatic

Cutting thickness

Max 12mm carbon steel

Plasma power supply

LGK63A

Control system

STARfire

Motors

Stepper motor

Software

Starcam

Weight

1600KG

Plasma Air Pressure

Max.0.8Mpa

Working Temperature

-10°C-60°C. Relative Humidity, 0-95%.

LCD Display Dimension

7 Inches

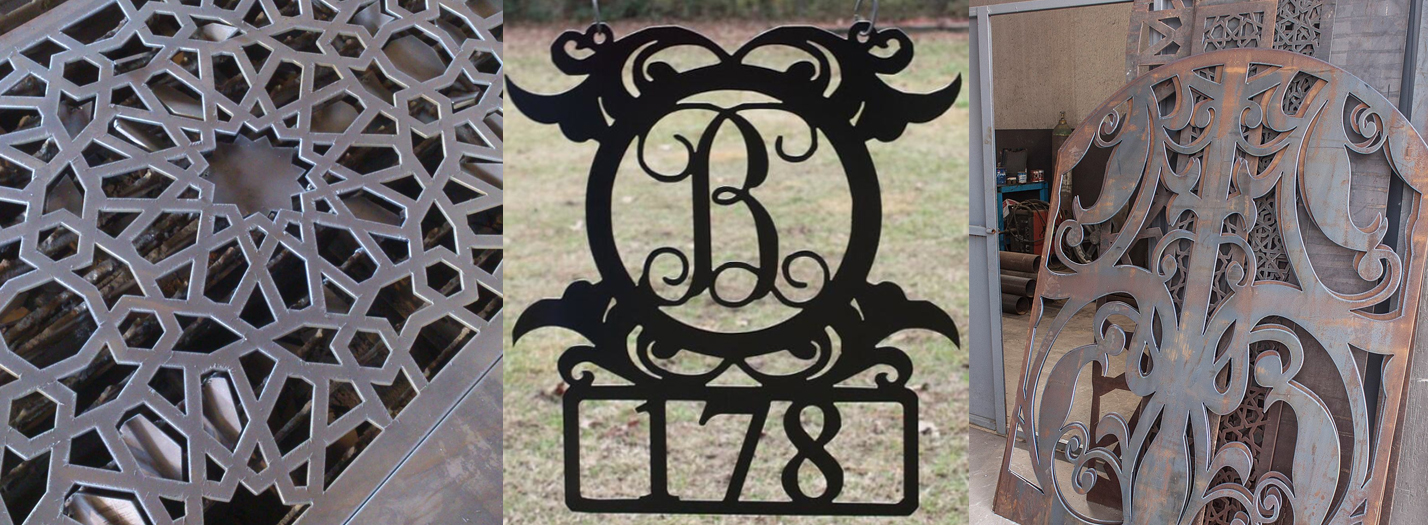

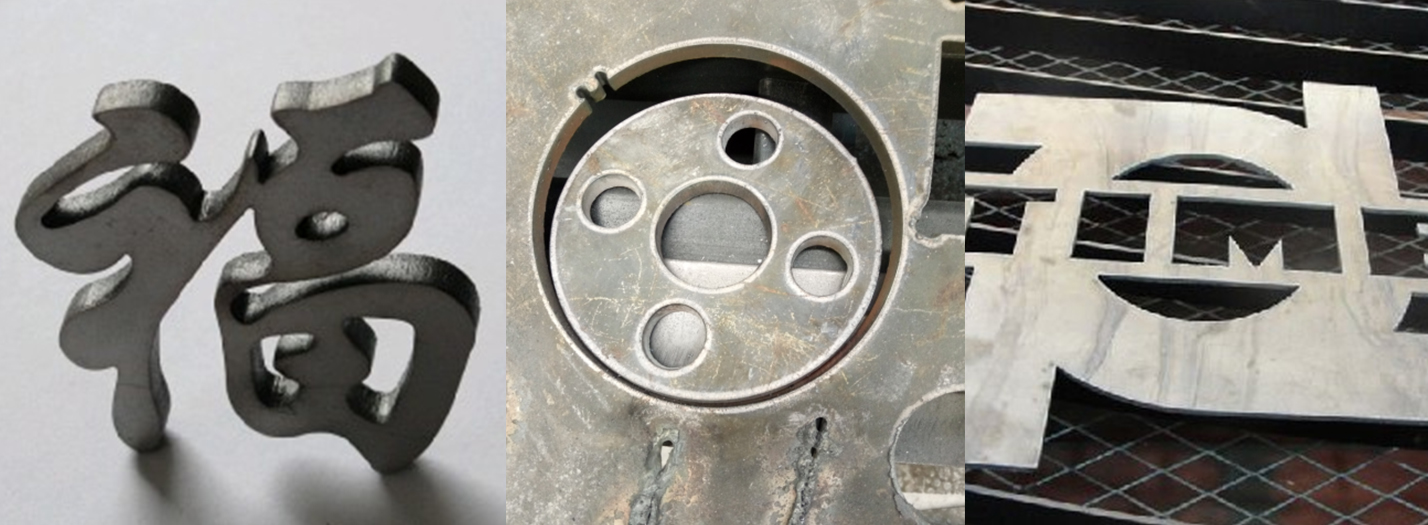

Sample photos
