  • ETA1060E

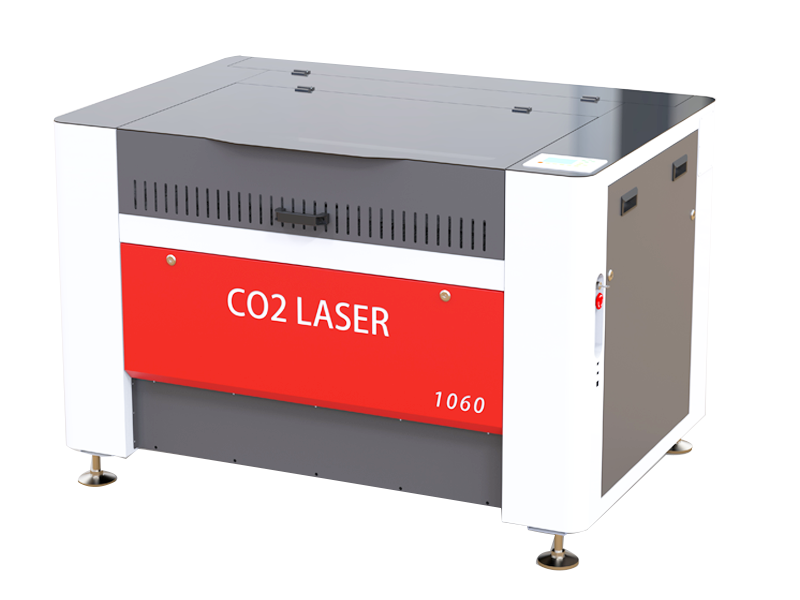

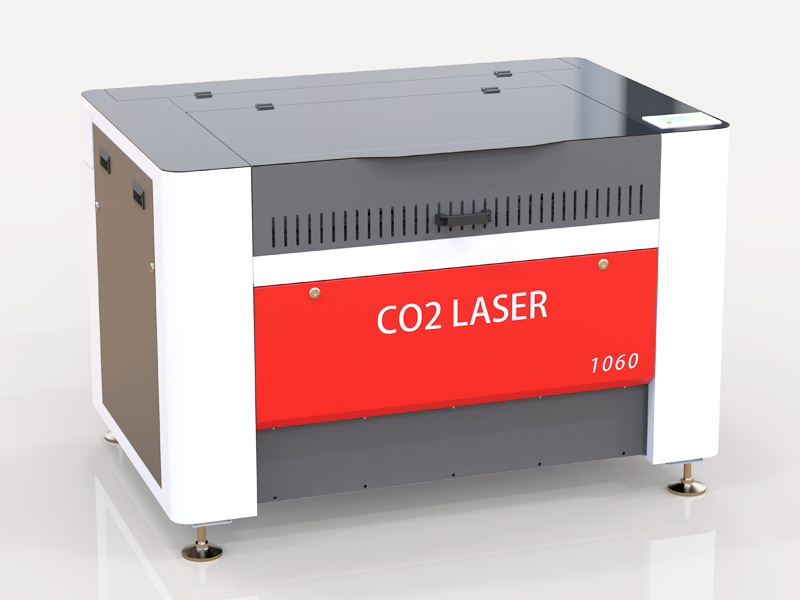

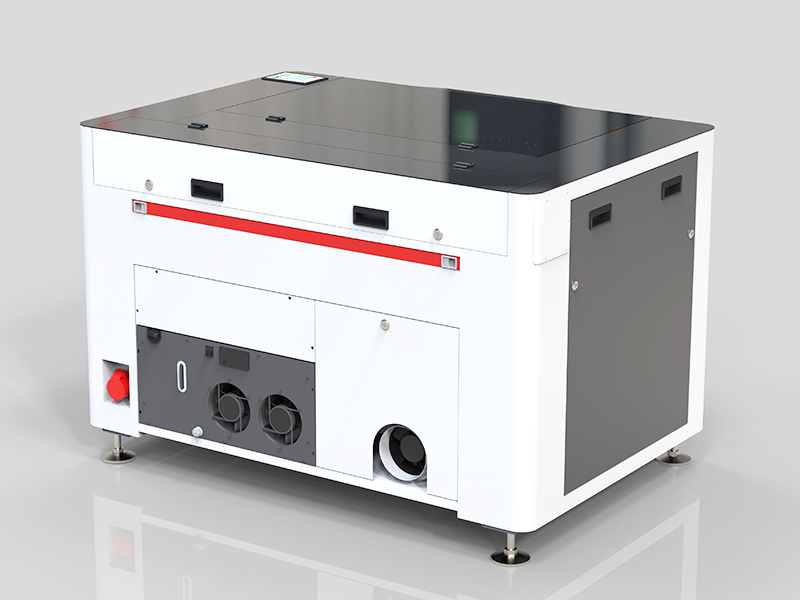

    MDF plywood laser cutting machine ETA1060E

  • MDF plywood laser cutting machine ETA1060E
  • MDF plywood laser cutting machine ETA1060E
  • MDF plywood laser cutting machine ETA1060E

Product features:

ETA1060 laser machine is mainly used in high-end handicraft workshops, craft workshops and other personalized customization fields. It has its own air purifier, which can effectively purify the smoke generated in the work. Simple operating system to help you easily turn ideas into reality. Powerful, can cut and carve a variety of materials. Quick insert with rotating shaft, insert rotating shaft, you can carve cylindrical material
TEL:0086-531-88605121
SEND AN INQUIRY

Product advantage

1.LASER SYSTEM

CO2 Laser — 10,600 nm CO2 glass laser tube ; 40W,50W,60W and 80W for ETA6040 Model,40W,50W,60W and 80W for ETA1060 Model.The laser beam is stable and in good quality, can cut and carve a variety of materials.

Fixed calibration — No need to fix the laser path again when change one new laser tube.


2.HIGH SPEED AND PRECISION:

Repeatable positioning accuracy:±0.05MM

Acceleration:MAX 15000mm/s²


3.MECHANICALS DESIGN:

Case — High quality metal welding and electrostatic spraying process

Linear System — X Y axis adopted imported linear guide, high working efficiency

Motion — High accuracy and power stepper motor

Cooling — Closed water circulation system

Air cooling auxiliary system — Protection and cooling focus lens

Recommended Operating Temperature: 10-45℃; 5-95(Non condensate water)


4.SPECIAL DESIGNS:

Humanized industrial design — it has a clean and beautiful appearance. It is small in size and can be placed at home and office.

Laser head ---specially designed laser head is simple and convenient to focus.

With the world's advanced focusing lens.

With honeycomb platform.

Multi function design —configure lifting platform, can add rotating shaft for working thick materials and cylindrical materials.Integrated the water chiller and the air blowing system in machine. When working, no need to connect other parts.

Air purification module —The air purification module can purify the dust and odor produced in the work and ensure the cleanliness of the working environment.


5.LIGHTING

Highlighting LED lights provides a good vision for the machine's work.


6.SOFTWARE AND OPERATION:

Simple drawing software and operating system —can identify hand-painted design. The zero base person can also operate the machine smoothly.Advanced offline control systematization, USB control and built-in large memory, the machine can work in a non computer environment.

Support 16 language switching, simplified Chinese, traditional Chinese, English, Japanese, French, German, Polish, Portuguese, Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkish, Arabic.

Support multiple format files—JPG,JPEG,PNG,GIF,MNG,PLT, DXT, DXF, BMP, AI, and so on,support for AutoCAD, CorelDraw direct output.

Product parameters

Model

ETA 6040

ETA 1060

Working size

600X400MM

1000X600MM

Laser type

CO2 enclosed laser tube, 10640nm wavelength

Optional laser power

40W/50W/60W/80W

60W/80W/100W

Supported formats

JPG, JPEG, PNG, GIF, MNG, PLT, DXT, DXF, BMP, AI, etc.support AutoCAD, CorelDraw direct output

Materials suitable for processing

Paper, card, fabric, leather, two-color board, plastic, acrylic, wood, MDF, plywood, stone, marble, metal, etc.

Machine size

1400X1050X1055MM/55.12X41.34X41.54in

Package size

1515X1185X1270MM
